묘사

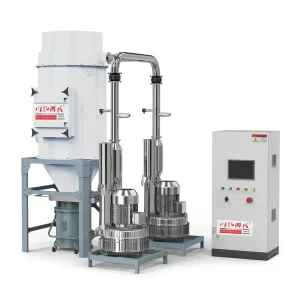

- The vacuum cleaner host can be equipped with two 12.5-25kw high-pressure fans. When two high-pressure fans are used at the same time, the maximum pressure can reach 50-70kpa;
- The collection device is equipped with a discharge valve (the discharge time can be timed);
- Pulse backwash cleaning and filtering; there is a built-in cyclone separator inside;
- Pressure relief device. When a certain pressure is reached, the pressure relief device automatically opens to protect the motor;
- The built-in main electronic control components (such as inverters, PLCs, touch screens) and turbine motors can realize independent control of the electric box;
- Built-in overload, overtemperature, phase loss, overvoltage and other protections, the control panel is simple and generous, and can be easily controlled; the alarm indication and start-stop buttons on the panel;
- It is required to have a humanized interactive interface and an intelligent control screen; it is designed with multiple visual adjustment functions such as pressure display, temperature display, temperature alarm, pressure alarm, running time, backwash time, 등.
- It can record and export equipment working data (pressure value, temperature value, running time, 등.) and fault alarm information.
- When the temperature reaches the set value or the negative pressure reaches the set value, it will automatically stop after 30 초.
- The touch screen can switch between manual and automatic, which is convenient for later maintenance.
This equipment can be equipped with: high-pressure blower, Roots blower, multi-stage centrifugal blower according to requirements.
매개변수
| 형 | 단위 | CYJY/12.5 | CYJY/15 | CYJY/18.5 | CYJY/20 | CYJY/25 |
| Motor Type | High pressure blower | High pressure blower | High pressure blower | High pressure blower | High pressure blower | |
| Max pipe distance | M | 50M | 60M | 65M | 70M | 75M |
| 볼트 | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| 힘 | kW | 12.5*2 | 15.0*2 | 18.5*2 | 20*2 | 25*2 |
| 진공 | Kpa | 34 | 38 | 42 | 48 | 52 |
| 기류 | M³/h | 1050*2 | 1050*2 | 1050*2 | 1350*2 | 1350*2 |
| 필터 | c㎡ | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
| 소음 | 데시벨(에이) | 74 | 74 | 74 | 74 | 72 |
| 숙티너 | 밀리미터 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| 용량 | 엘 | 800*2 | 800*2 | 800*2 | 800*2 | 800*2 |
| 무게 | 병력 | 600 | 600 | 600 | 600 | 600 |
| Discharging Method | Pneumatic butterfly valve | Pneumatic butterfly valve | Pneumatic butterfly valve | Pneumatic butterfly valve | Pneumatic butterfly valve | Pneumatic butterfly valve |
| 치수 | 밀리미터 | 2600*1160*2950 밀리미터 | ||||
특징
- High-Pressure Fan Configuration: The vacuum cleaner can be equipped with two 12.5-25 kW high-pressure fans, achieving a maximum pressure of 50-70 kPa when both are in use.
- Efficient Discharge System: The collection device features a discharge valve with customizable timing for effective material unloading.
- Advanced Filtration System: Includes pulse backwash cleaning, filtering, and a built-in cyclone separator to enhance filtration efficiency.
- Automatic Pressure Relief: Equipped with a pressure relief device that automatically activates to protect the motor when a specific pressure threshold is reached.
- Intelligent Control Interface: Features a user-friendly touch screen with functions for pressure and temperature display, alarms, and the ability to record and export operational data, supporting both manual and automatic operation for easy maintenance.
FAQ
Q: 어떤 유형의 청소 장비를 제공합니까??
에이: 상업용 진공청소기를 제공합니다, 산업용 진공청소기, 습식 및 건식 진공, 청소부, 완전 자동 바닥 세정기.
Q: 귀하의 제품은 어떤 산업에 적합합니까??
에이: 우리의 장비는 공장에서 널리 사용됩니다, 호텔, 병원, 부두, 석유, 전기, 철도 및 기타 산업.
Q: 장비를 맞춤 설정할 수 있나요??
에이: 예, 고객의 현장 환경과 요구에 따라 다양한 청소 장비를 전문적으로 맞춤 제작할 수 있습니다..
Q: 애프터 서비스를 받는 방법?
에이: 장비 유지 보수 및 애프터 서비스를 제공하기 위해 전담 수리 센터를 운영하고 있습니다..
Q: 자세한 내용은 어떻게 연락할 수 있나요??
에이: 더 많은 정보와 지원을 원하시면 당사 웹사이트를 통해 문의하시거나 고객 서비스 핫라인에 전화하실 수 있습니다..
고객 경험을 향상시키기 위해, 장비의 외관과 성능은 주기적으로 업데이트됩니다.
제발 저희에게 연락주세요 최신 제품 사양 및 이미지는.
